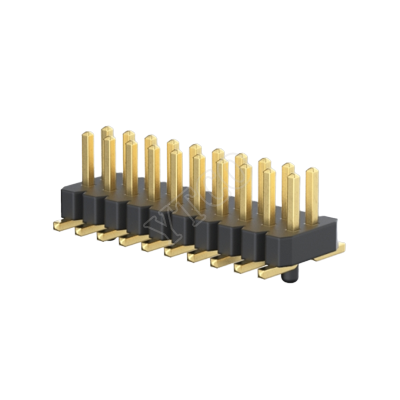

1510系列 1.00mm双排排针/塑高1.0mm/SMT/焊板型/定位柱可选
Current Rating:0.75AMP
Contact Resistance:30mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage:500V AC/DC
Operating Temp Range:-55℃~+125℃ with Gold
RoHS Compliant
Pitch | 1.00x1.00mm |
Part No. | 1510-12XXMXXXXXXXX01 |
Plating Specification | G0= Gold Flash Plated over Nlckel |
Circuit | 04~100 CIRCUITS |
